CBL-800 Bi-metallic composite bearing material consists of steel backing with lead bronze or lead-free copper alloy (CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu)lining, bearing material for oil/grease lubricated applications. The copper alloy forms a continuously frame for thermal conductivity. These bearing structures are with high load capacity and good fatigue property. Higher tolerance can be achieved after re-machined from the customers. Lead-free bronze lining bearing material conforms to the European RoHS directive.
Angineering machine: underpan, thrust wheel, Towing wheel, Steering knuckle,tension pulley...
Automotive:trunnion shaft, connecting rod, valve rocker, camshaft, gear box, internal-combustion engine,
And Plunger pump friction plate, gear pump friction plate...

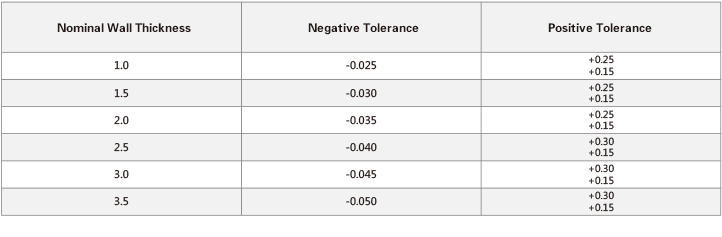

Tolerance of Wall Thickness

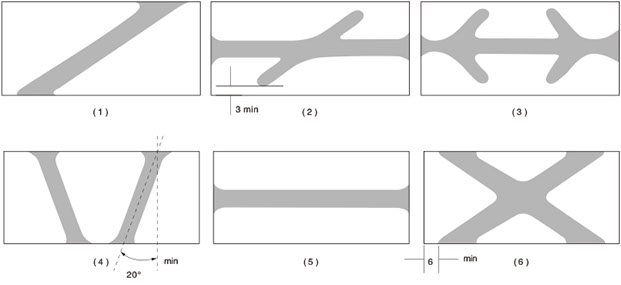

Oil Groove

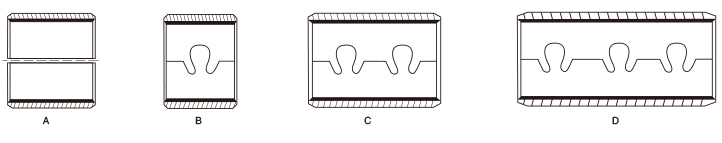

Buckle Form
CBL-800 Tech. Deta
The use of parameters
Parameters
CuPb30
AlSn20Cu
CuPb10Sn10
+Graphite
Material type
CuPb10Sn10/ CuSn6Zn6Pb3
CuPb24Sn4
Hardmess of bronze alloy
70~100HB
60~90HB
45~70HB
30~45HB
30~40HB
Max. dynamic Load
65N/mm²
90N/mm²
38N/mm²
25N/mm²
30N/mm²
Sapphire" fatigue class
125
—
115
105
105
Friction coefficient(oil)
0.06~0.14
<0.08
0.06~0.16
0.08~0.16
0.08~0.17
PV limit(Grease)
2.8N/mm².M/s
2.8N/mm².M/s
2.8N/mm².M/s
2.5N/mm².M/s
—
PV limit(Oil)
10N/mm².M/s
10N/mm².M/s
10N/mm²2.M/s
8N/mm².M/s
6N/mm².M/s
Max. temperature
260℃
200℃
200℃
170℃
150℃
Load limit
150N/mm²
90N/mm²
130N/mm²
120N/mm²
100N/mm²
Speed limit v max.
5m/s
5m/s
10m/s
15m/s
25m/s
Hardness of mating surface
53 HRC
53 HRC
50 HRC
270 HB
250 HB
Tensile strength
150N/mm²
185N/mm²
150N/mm²
200N/mm²
200N/mm²
Bimetal
Bushing
Bimetal
Bushing
Bimetal
Bushing
Bimetal
Bushing
Bimetal
Bushing
CBL-800
CBL-801
CBL-802
CBL-803
CBL-08G
